Flexible Fingerprint Sensor

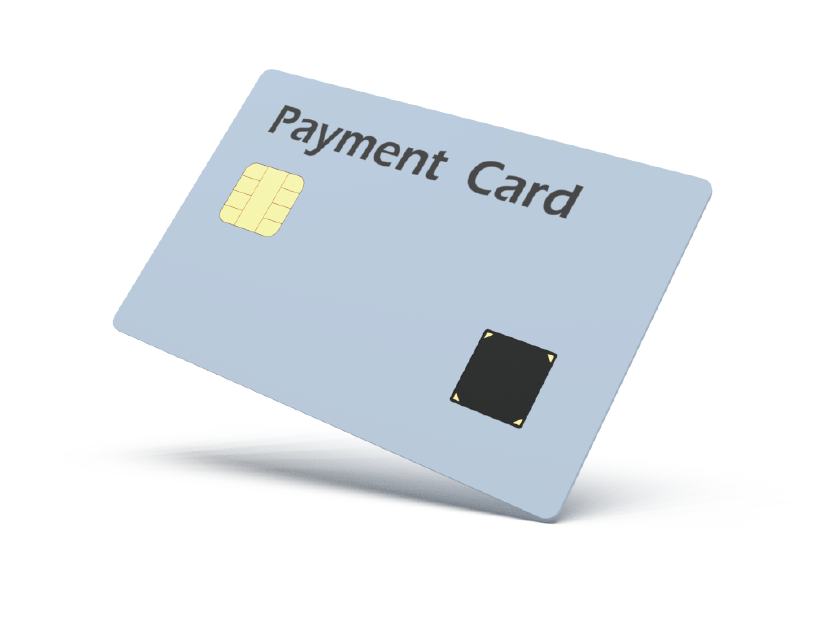

When selecting a fingerprint sensor for payment card applications, it's essential to consider factors such as performance, security features, form factor compatibility, and cost-effectiveness. Conducting thorough research and evaluating the specific requirements of your application will help you choose the best fingerprint sensor solution for your needs.

256 gray levels/sensor pixel,8-bits ADC
Image Resolution: 340 DPI
Image Size :120 x 120 pixels
Sensor Active Area : 9.0 mm x 9.0 mm

Specification

Model No.	FS-1034
Item	Feature
Image Gray Level	256 gray levels/sensor pixel, 8-bits ADC
Image Resolution	340 DPI
Image Size	120 x 120 pixels
Sensor Active Area	9.0 mm x 9.0 mm
Interface	SPI - 4 pins
Sensor Operating Voltage	1.8V~2.5V
Encryption	AES-256 ; SHA-256
Working Model and Power Consumption	Sleep Mode < 1 uA
	Current level getting image < 8mA
	Scanning image time < 1 sec
Environment Specifications	ESD protection for air discharging: +/- 15KV
	Operating temperature: -200C~+85C
	Humidity: 0％~90％ RH under 60c
Module dimension	20.0 mm x 25.0 mm x 0.40 mm
Package	Tape and reel
